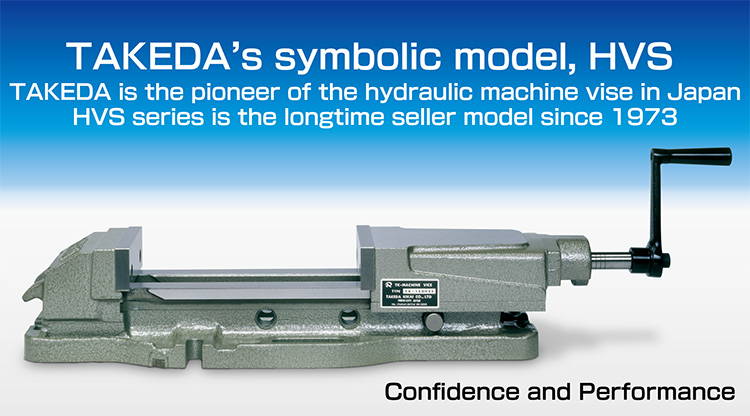

HVS series are the starting point of TAKEDA.
The superior hydraulic mechanism, TAKEDA’s original dish spring mechanism and the high rigidity body enable elastic and steady clamping.
HVS series has wide range in size and unique function type such as upper and side handle, inclining body type.
– Good operability, durability, reliability and wide jaw opening.
– Stage system enables quick positioning.
– “Two applications” Hydraulic + conventional vise.
When a high-pressure clamp for heavy cutting is required, it can be used as hydraulic machine vise. In finish machining, or machining of aluminum and plastic, it can operate as a precision conventional.
– The material of body is ductile cast iron FCD700. Reference and sliding surface is quenched, therefore it has the good abrasion resistance and durability
| Model | TK-125HVS | TK-150HVS | TK-175HVS | TK-200HVS | TK-250HVS |
| Jaw width | 129 | 154 | 179 | 206 | 256 |
| Jaw height | 46 | 51 | 56 | 62 | 80 |
| Jaw opening | 220 | 300 | 340 | ||
| Work mounting face height | 72 | 82 | 90 | 100 | 118 |
| Total length | 673 | 807 | 858 | 900 | 1042 |
| Guide block width | 16 | 18 | |||
| Max. clamping force(KN) | 35 | 44 | 64 | 80 | 120 |
| Weight(Kg) | 31 | 50 | 66 | 89 | 146 |
| CAD data | DXF | DXF | DXF | DXF | DXF |
| DWG | DWG | DWG | DWG | DWG | |
| Model | TK-150HVS-F | TK-175HVS-F | TK-200HVS-F |
| Jaw width | 154 | 179 | 206 |
| Jaw height | 51 | 56 | 62 |
| Jaw opening | 300 | ||
| Work mounting face height | 82 | 90 | 100 |
| Total length | 876 | 937 | 979 |
| Guide block width | 18 | ||
| 最大締付力(KN) | 44 | 64 | 80 |
| 質量(Kg) | 52 | 68 | 91 |
| Model | TK-150HVS-U | TK-175HVS-U | TK-200HVS-U |
| Jaw width | 154 | 179 | 206 |
| Jaw height | 51 | 56 | 62 |
| Jaw opening | 300 | ||
| Work mounting face height | 82 | 90 | 100 |
| Total length | 876 | 937 | 979 |
| Guide block width | 18 | ||
| Max. clamping force(KN) | 44 | 64 | 80 |
| Weight(Kg) | 52 | 68 | 91 |
| Model | TK-150HVI-G | TK-150HVI-GF |
| Jaw width | 154 | |
| Jaw height | 51 | |
| Jaw opening | 300 | |
| Total length | 801 | 870 |
| Guide block width | 18 | |
| Max. clamping force(KN) | 44 | |
| Max. angle(Degree) | 50 | |
| Weight(Kg) | 63 | 65 |
